产品概述 Product Overview

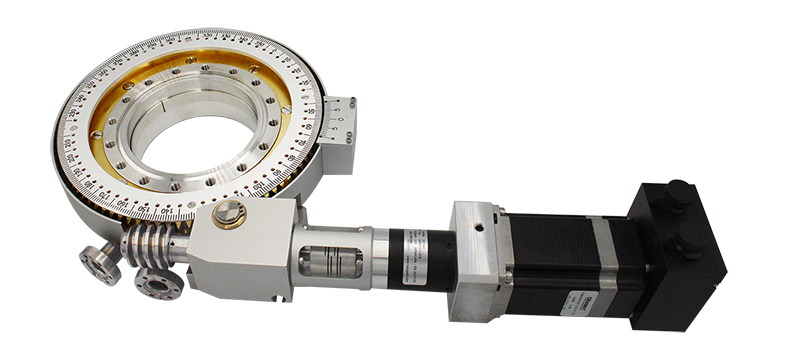

差分旋转驱动允许两个法兰同轴相对旋转，可以作为构建超高真空多轴操纵机构的模块化部件，为组件提供基本的旋转运动，并可实现360°连续旋转。
差分旋转驱动可应用于样品表面分析(XPS, AES或SIMS)，离子/中子/原子散射实验等。
Differentially Pumped Rotary Feedthrough allows two flanges to rotate concentricly, which can be used as a modular component for constructing UHV multi-axis manipulators. It provides primary rotation for other components and achieve 360° continuous rotation.
The feedthrough could be used for the applications including sample surface analysis (XPS, AES or SIMS), ion/neutral/atom scattering experiments, etc.
规格说明 Specification
● 手动/步进电机驱动
| ● 精密球轴承和优质PTFE
| ● 旋转范围：360°(可连续旋转)
|
● 最高烘烤温度：150°C
| ● 激光蚀刻刻度以0.1°递增
| ● 两级差分实现超高真空性能
|
● 两端安装法兰：CF法兰，螺纹孔
|
|
|
● Manual/ Step Motor Actuator
| ● Precision Ball Bearings and Quality PTFE
| ● Rotation range: 360° continuous
|
● Bakeable to 150℃
| ● Laser Etched Scale in 1° Increments
| ● Two Stage Differential Pumping for UHV Performance
|
| ● Mounting flange on both sides: CF flange, tapped hole |
|
|
| 法兰尺寸
| 驱动方式
| 精度
| 重量（Kg)
| 型号
|
| 毫米
| 英寸
|
| 114
| 4.5
| 手动
| 0.1°
| 4.5
| DPRF63M
|
| 步进电机
| 0.01°
| 6.1
| DPRF63A
|
152
|
6
| 手动
| 0.1°
| 9.2
| DPRF100M
|
| 步进电机
| 0.01°
| 11.0
| DPRF100A
|
产品尺寸 Dimension Drawing
相关下载Related Downloads
DPRF63A
点击下载DPRF63M
点击下载DPRF100M
点击下载
